Various Harvia wood stove accessories are available for safety and to enhance your sauna experience. Chimney kits and pipe water heaters are made specifically for Harvia stoves that have the European 4 1/2” (115mm) smoke outlet.
WL100
Size: 14 9/16″w x 26 3/16″d x 2 3/8 to 3″h
Weight: 24 lbs
Color: Black Steel
Can be used with most Harvia & Harvia Legend wood stoves.
WL110
Size: 22”w x 25”d x 2 3/8 to 3”h
Weight: 27 lbs
Color: Black Steel
Use with stoves that have built in water tank and with larger stoves such as Harvia 36.
The protective shield decreases the safety distance from the stove to combustible materials. The shields attach directly to the stove and shape around it. Each heater model has its own specific shield. Shields are purchased as a 3 piece set.
Material: Black painted steel
WL450 3 piece set for M3 & M3SL: 17 7/8″w x 19 1/4″d x 31 1/2″h
WL475 3 piece set for Harvia Linear 16: 19 1/8″w x 21 7/8″d x 32 1/8″h
WL550 3 piece set for 20, 20SL, & 20DUO: 19 11/16″w x 22 1/2″d x 32 1/4″h
WL575 3 piece set for Harvia Linear 22: 20 7/8″w x 23 1/4″d x 33 5/8″h
WL585 3 piece set for Linear 22LS/22RS: 24 7/16″w x 23 1/4″d x 33 5/8″h
WL650 3 piece set for 20ES: 19 11/16″w x 28″d x 32 1/4″h
WL750 3 piece set for 26: 19 11/16″w x 22 1/2″d x 35 1/2″h
WL850 3 piece set for 36 & 36DUO: 22 5/8″w x 22 7/8″d x 35 1/2″h
WP220ST
Size: 14″w x 7 1/2″d x 16 1/8″h
Color: Stainless
Tank Size: 5.8 gal.
Weight: 16 lbs
Mounts to all Harvia wood stoves except the Harvia 50.

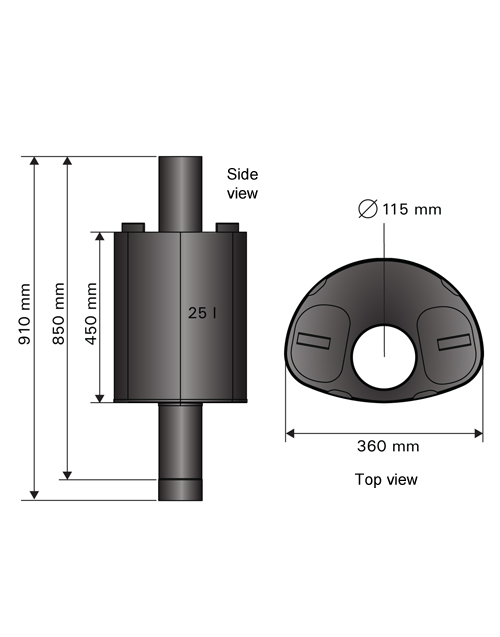

WP250LD
Size: 14 1/4″w x 14 1/4″d x 35 7/8″h
Color: Black steel
Tank Size: 6.6 gal.
Weight: 24 lbs
Water heater mounts to Legend stoves. Front of the water heater is covered with 33 lbs. of stones so water can be thrown on it (stones included). Water tap mounts to wall or nearby bench.
Railing made of heat treated Aspen.
SASPO240
Size: 33 1/2″diam. x 6 1/4″h
SASPO241
Size: 31 1/2″diam. x 3 1/8″h
SASPO242
Bracket kit is available to make double slat half round railing.
WL200
Legend protective shield walls
Size: 20 1/2″w x 5″ curved depth x 39 3/8″h
Weight: 15 lbs.
Color: Black painted metal
Legend wood stoves can use 1 to 3 shields to protect desired sides. Shields cut the safety distances on protected sides by half. Suitable for all Legend wood stoves. The floor bedding is sold separately and is made of aluminum zinc coated steel.
WL300
Size: 11 7/8″diam. x 22″h
Color: Black
Weight: 10 lbs
Stone capacity: 90 lbs (stones included)
The smoke pipe cover adds additional stone capacity to the Legend heater and reduces smoke pipe safety distance. It can be used on all Legend wood burning stoves.
WHP1500
The Harvia stainless steel chimney kit is suitable for all Harvia wood stoves except the Harvia 50. Pipe is European size (115 mm diam.) so no adaptor is needed. The WHP1500 chimney kit comes with 1.5 m insulated chimney pipe, 1 m non-insulated stainless smoke pipe, clamps, lead through flange, lead through insulation with protector, rain flange kit, and rain cap. 1 m and .5 m chimney extensions may be ordered separately. Inside chimney height may be 3 m high unsupported and the outdoor corresponding self-supported chimney height may be 2 m high.
WHP1500M
The Harvia black steel chimney kit is suitable for all Harvia wood stoves except the Harvia 50. Pipe is European size (115 mm diam.) so no adaptor is needed. The WHP1500M chimney kit comes with 1.5 m insulated black chimney pipe, 1 m non-insulated black smoke pipe, clamps, lead through flange, lead through insulation with protector, rain flange kit, and rain cap. 1 m and .5 m chimney extensions may be ordered separately. Inside chimney height may be 3 m high unsupported and the outdoor corresponding self-supported chimney height may be 2 m high.
WHP500
Insulated stainless chimney pipe extension .5m (approx. 19 3/4″)
WHP1000
Insulated stainless chimney pipe extension 1 m (approx. 39 3/8″)
WHP500M
Insulated black steel chimney pipe extension .5m (approx. 19 3/4″)
WHP1000M
Insulated black steel chimney pipe extension 1 m (approx. 39 3/8″)
